2 in 1 Diode Laser & Q Switch Pico Laser

Core Technologies and Clinical Applications

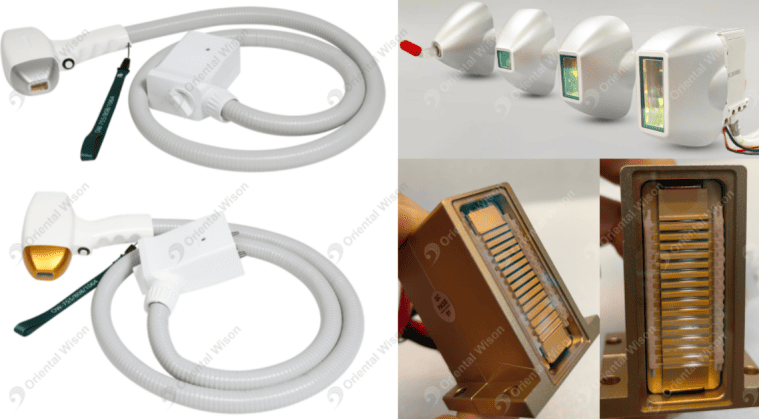

Diode Laser Component

The diode laser section delivers effective, permanent hair reduction across all skin types using three clinically proven wavelengths.

The 2 in 1 diode Laser & Q Switch Pico Laser utilizes these wavelengths to target melanin in the hair follicle while preserving surrounding tissue.

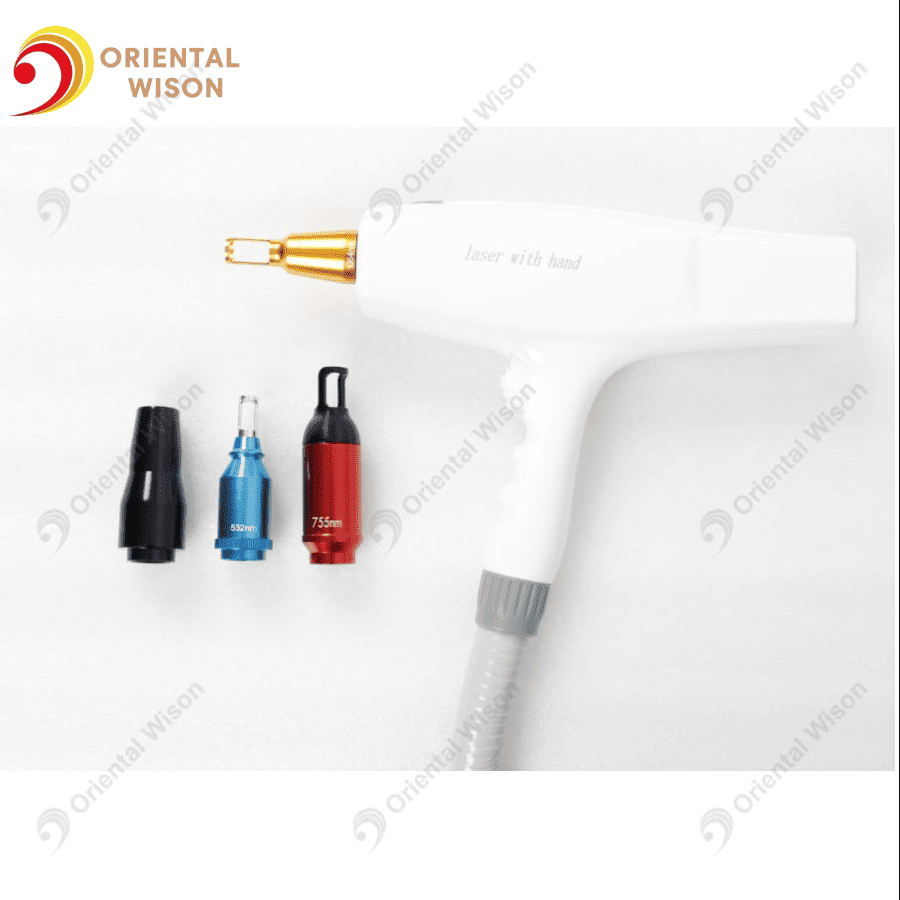

Q-Switched Pico Laser Component

The pico laser section uses ultra-short pulse durations to fragment tattoo ink and pigment particles with minimal thermal damage.

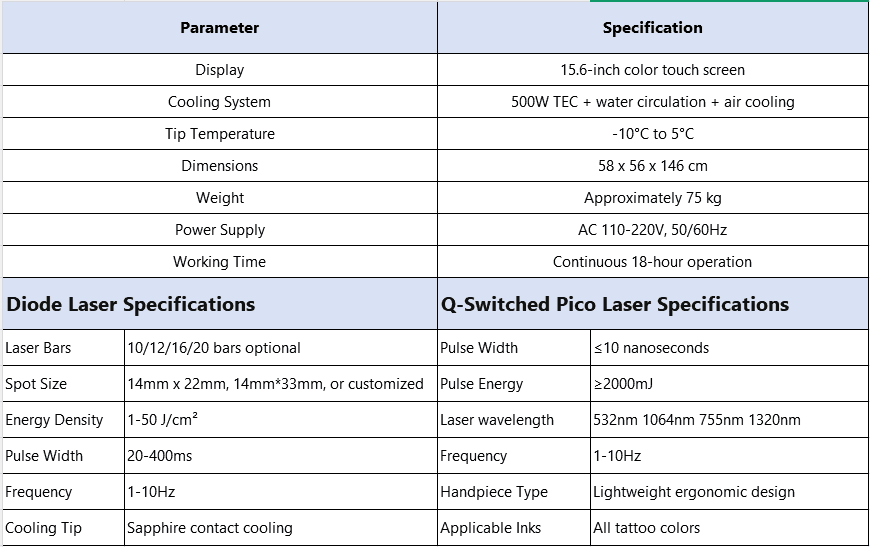

Technical Specifications

How Each Technology Works?

Diode Laser Hair Removal

The 2 in 1 diode Laser & Q Switch Pico Laser delivers targeted energy to melanin-rich hair follicles. The 808nm wavelength achieves optimal absorption due to its balance between melanin affinity and skin penetration depth. The 755nm wavelength works effectively on fine, lighter hair, while 1064nm penetrates deeper for darker skin types where melanin competition is a concern.

The sapphire contact cooling maintains the epidermis at 0-5°C during treatment, allowing higher fluence delivery without thermal injury. This results in:

*Permanent follicle destruction after 6-8 sessions

*Safe treatment on all body areas including face, underarms, and bikini line

*Comfortable patient experience with minimal downtime

Q-Switched Pico Laser Pigment Management

The pico laser emits pulses in the nanosecond range, creating a photomechanical effect that shatters pigment particles into microscopic fragments. This mechanism differs from traditional thermal-based lasers, offering:

*Lower risk of post-inflammatory hyperpigmentation

*Faster clearance of stubborn multi-color tattoos

*Effective treatment of benign pigmented lesions (freckles, sun spots)

*Carbon peel option for skin brightening and pore refinement

The 2 in 1 diode Laser & Q Switch Pico Laser supports wavelength switching within seconds, enabling practitioners to address multiple concerns in a single session.

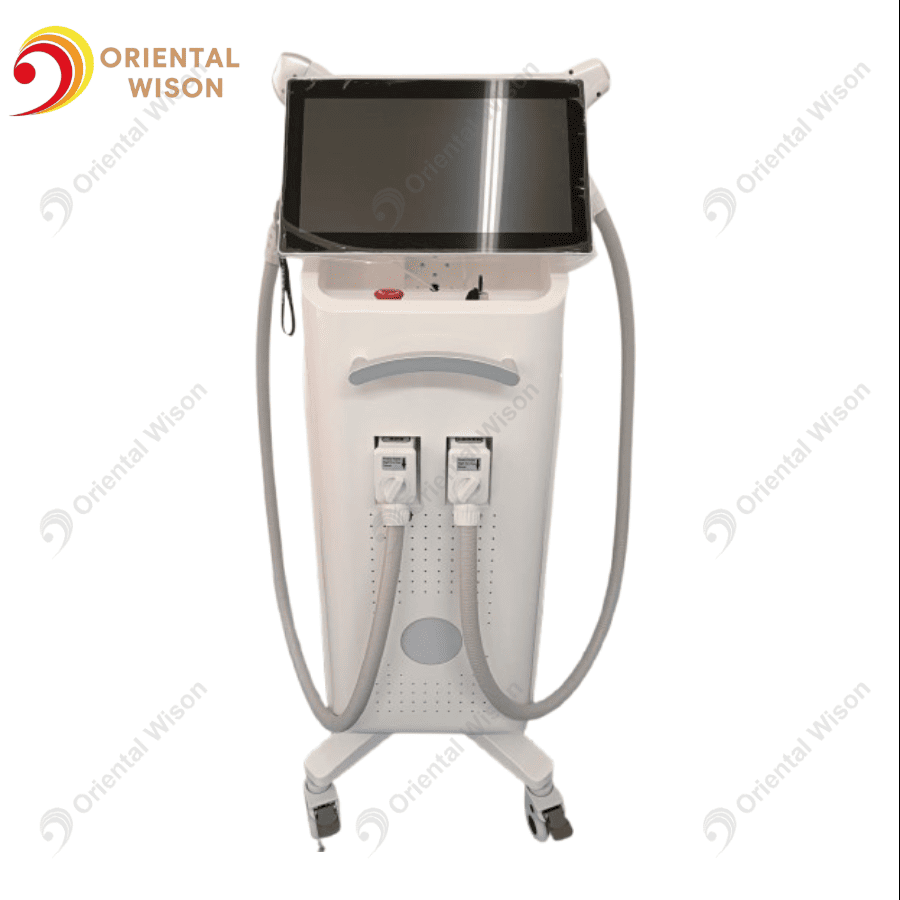

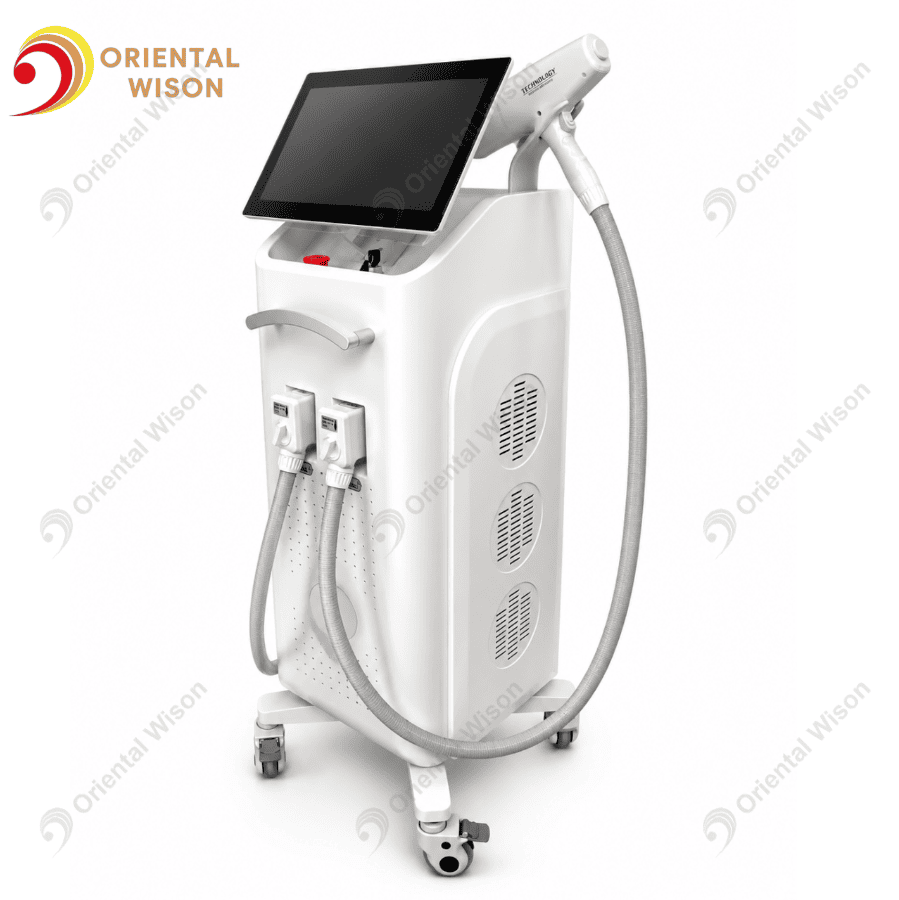

Key Features of the Workstation

Integrated Dual-Technology Design

*Single platform eliminates need for separate hair removal and tattoo removal devices

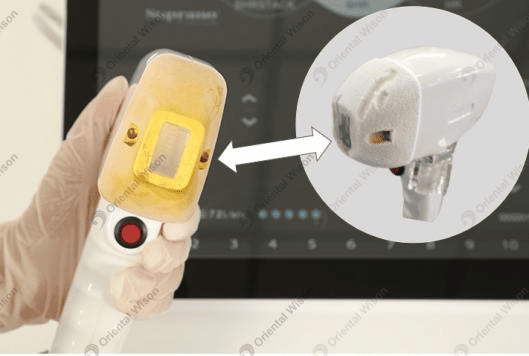

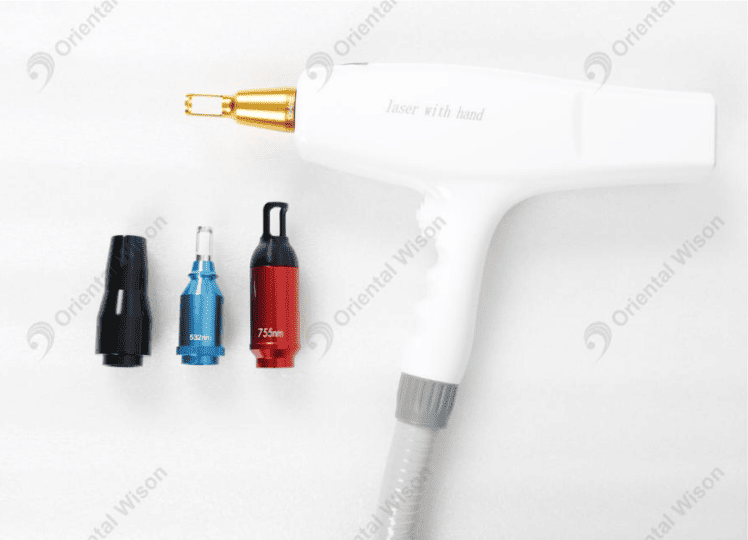

*Quick-switch handpiece connection for seamless treatment transitions

*Shared cooling and power systems reduce maintenance requirements

*Compact footprint saves clinical floor space

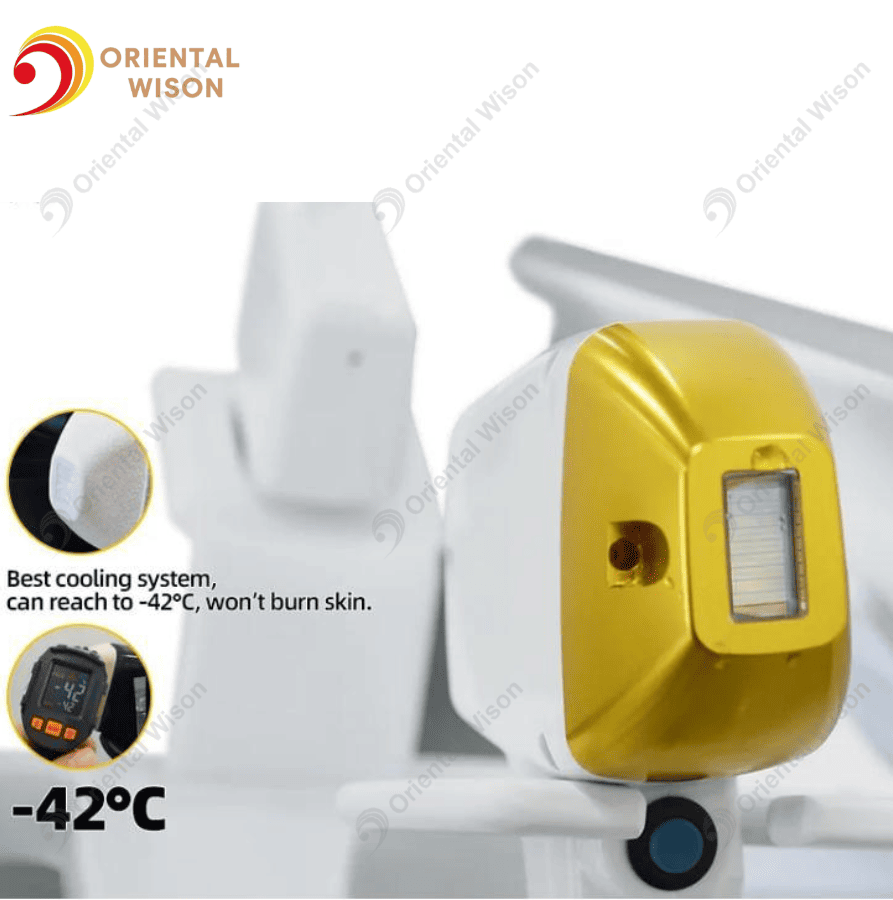

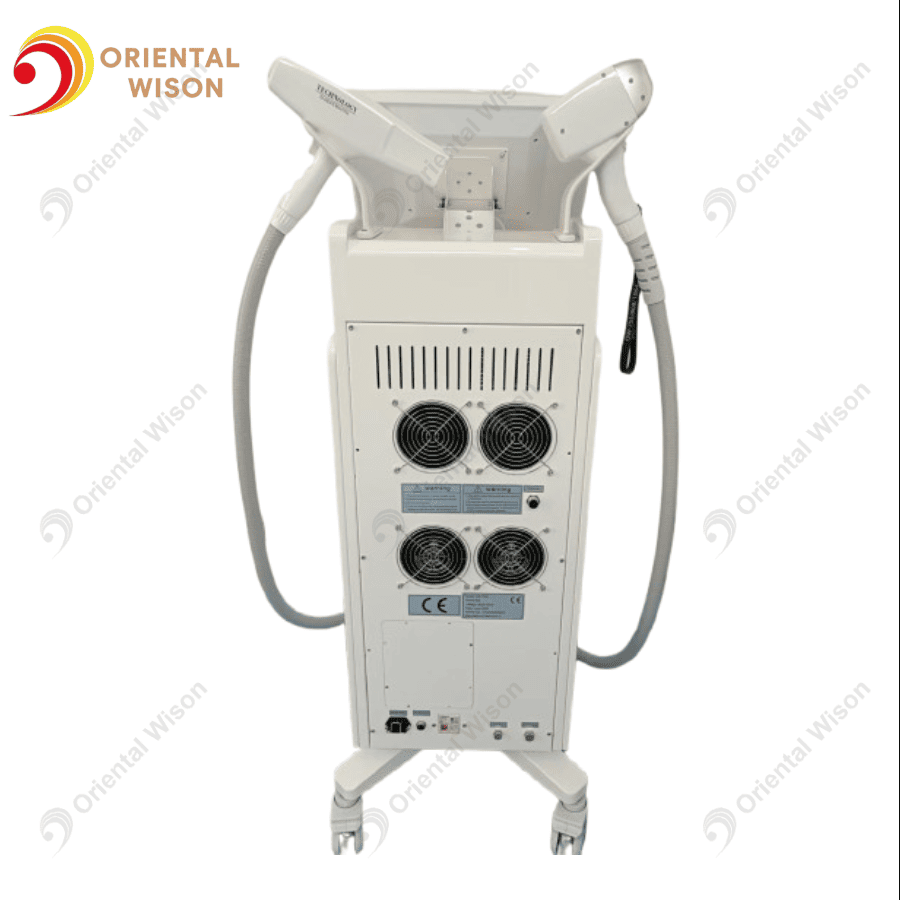

Advanced Cooling System

*500W TEC module provides rapid cooling

*Water circulation maintains consistent temperature

*Internal fans dissipate heat for continuous operation

*Tip temperature adjustable across five levels

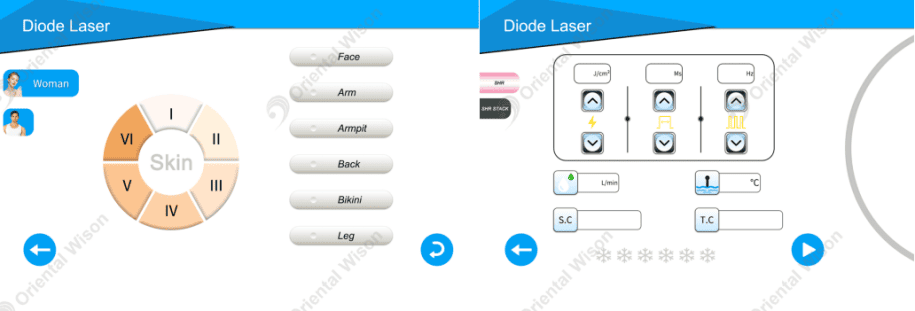

User-Friendly Interface

*Preset protocols for hair removal, tattoo removal, and pigmentation

*Real-time parameter adjustment during treatment

*Treatment history storage for each client

*Visual safety alerts and energy calibration guides

Frequently Asked Questions

Q: Can the 2 in 1 diode Laser & Q Switch Pico Laser treat all skin types for hair removal?

A: Yes. The 2 in 1 diode Laser & Q Switch Pico Laser includes three diode wavelengths (755nm, 808nm, 1064nm) that collectively cover Fitzpatrick skin types I through VI. For lighter skin types (I-III), the 755nm and 808nm wavelengths provide optimal melanin absorption. For darker skin types (IV-VI), the 1064nm wavelength is preferred because it penetrates deeper and has lower melanin absorption in the epidermis, reducing the risk of burns or post-inflammatory hyperpigmentation. The contact cooling system further protects the epidermis, making treatments safe across all skin tones. Always perform a patch test 24 hours before the first full treatment.

Q: How many sessions are typically required for complete tattoo removal?

A: Tattoo removal with the 2 in 1 diode Laser & Q Switch Pico Laser typically requires 6 to 12 sessions, depending on several factors: ink color (black responds fastest; green and blue are more stubborn), ink depth and density, tattoo age (older tattoos generally clear faster), patient's immune system, and tattoo location (extremities clear slower due to reduced circulation). Sessions are spaced 6-8 weeks apart to allow the body's lymphatic system to clear fragmented ink particles. Professional tattoos generally require more sessions than amateur tattoos. The pico laser's photomechanical action reduces the total number of sessions compared to traditional Q-switched lasers.

Q: Is there any downtime after treatment with the 2 in 1 diode Laser & Q Switch Pico Laser?

A: Downtime is minimal for most treatments. After hair removal sessions, patients may experience mild erythema (redness) and perifollicular edema (swelling around follicles) that typically resolves within 2-24 hours. No special recovery time is needed, though sun avoidance is recommended for 48 hours. For tattoo removal, the treated area may show whitening (frosting) immediately after the pulse, followed by mild swelling and possible blistering within 24-48 hours. These effects are normal and indicate effective pigment fragmentation. Patients can return to normal activities immediately but should keep the area clean and protected from sun exposure. The 2 in 1 diode Laser & Q Switch Pico Laser minimizes thermal damage, resulting in faster healing than older laser technologies.

Investment and Operational Benefits

Return on Investment Considerations

Dual technology eliminates the need for two separate device

Shared cooling and power systems reduce ongoing costs

Expanded treatment menu attracts a wider patient base

Quick treatment times allow for higher daily patient volume

Minimal consumables keep operating expenses low

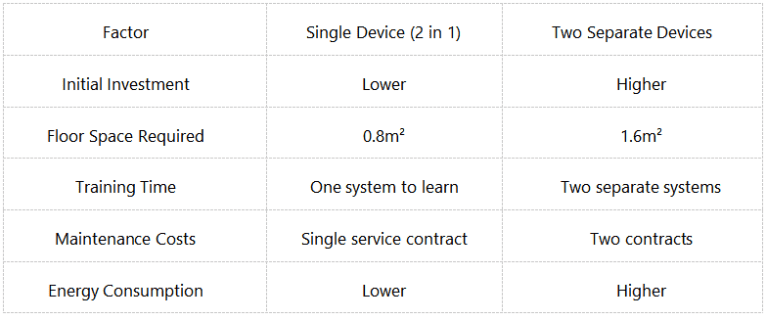

Comparison with Separate Devices

Conclusion

The 2 in 1 diode Laser & Q Switch Pico Laser delivers professional-grade hair removal and pigment management in a single, cost-effective platform. With three diode wavelengths covering all skin types and four pico wavelengths addressing every tattoo color and pigmented lesion, this system meets the core demands of modern aesthetic practice.

The integrated cooling system ensures patient comfort, while the intuitive touchscreen simplifies treatment programming for both experienced clinicians and newer practitioners. CE Medical and ISO certifications provide assurance of quality and safety.

For clinics seeking to expand their service menu without multiplying capital expenditure, the 2 in 1 diode Laser & Q Switch Pico Laser represents a strategic investment that combines clinical versatility with operational efficiency. The compact design, mobile construction, and reliable performance make it suitable for both high-volume practices and boutique aesthetic settings.
