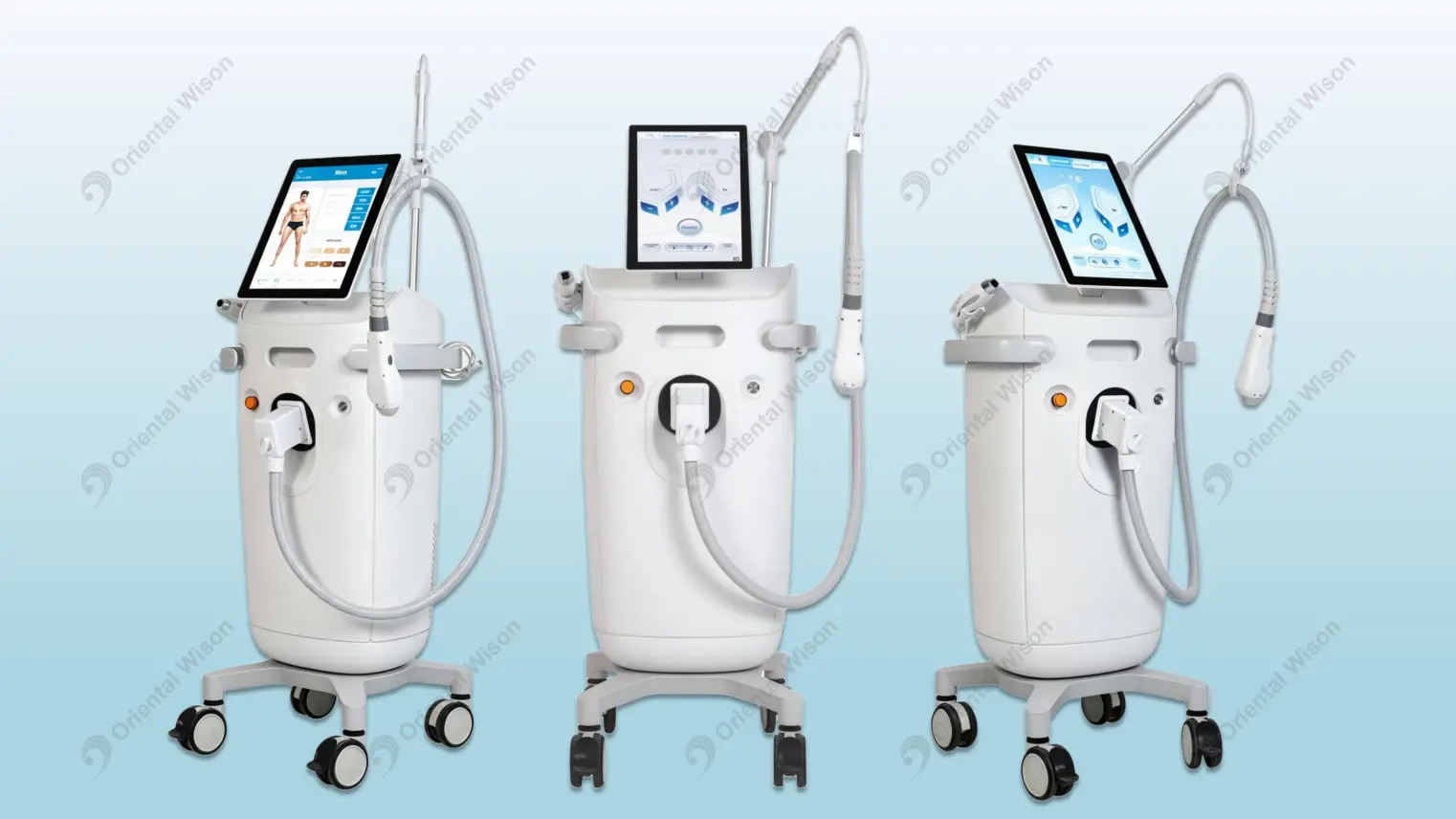

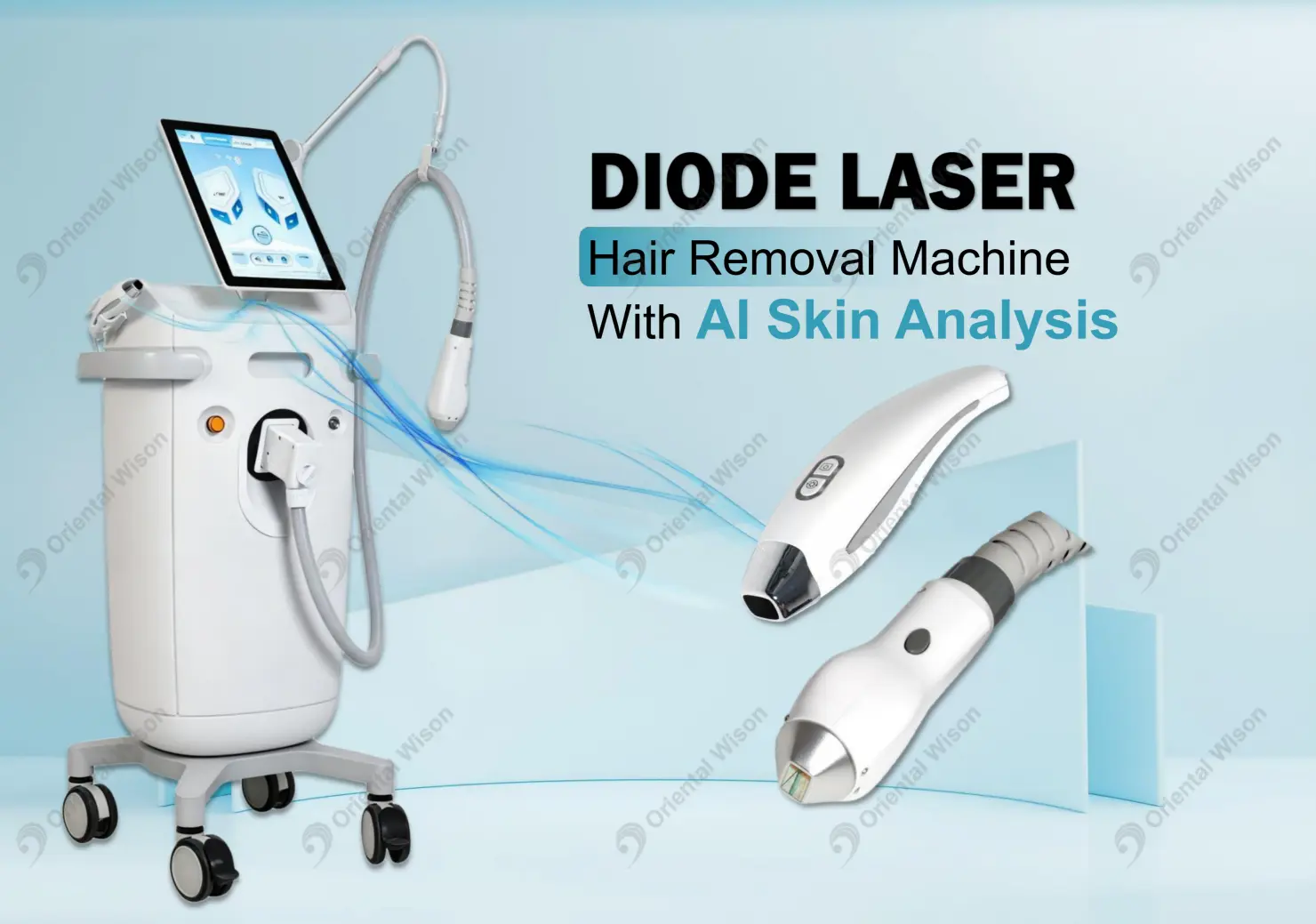

BBT PRO Diode Laser Hair Removal with AI Skin Analysis

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** combines four-wavelength diode laser technology with an AI-driven diagnostic tool. This system delivers hair removal, pigment removal, and skin whitening in one professional workstation. Dermatologists and medical aesthetic centers use this device for safer, more effective treatments.

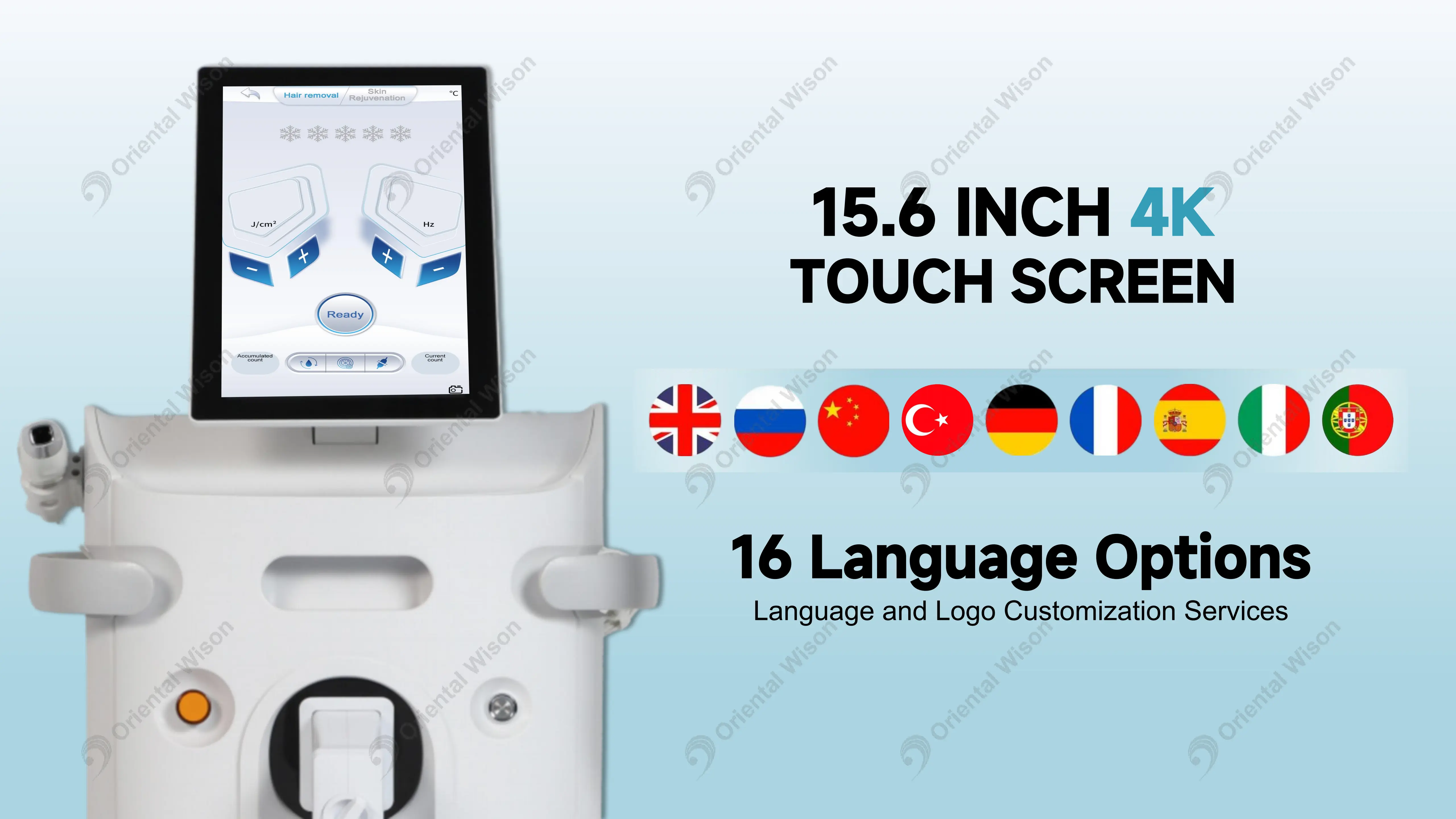

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** combines three-wavelength diode laser technology with AI-driven skin diagnostics. The system delivers permanent hair reduction across all skin types plus pigment removal and skin whitening. FAC collimation technology ensures uniform energy output, extended laser lifespan, and superior cooling performance. The 15.6 inch 4K touch screen, Android control system, and four-component cooling make this device suitable for dermatology clinics and medical aesthetic centers. The AI analyzer removes guesswork from parameter selection, reduces risk on darker skin, and builds client confidence through data-driven consultations.

H2: Technical Specifications

H2: Working Principle

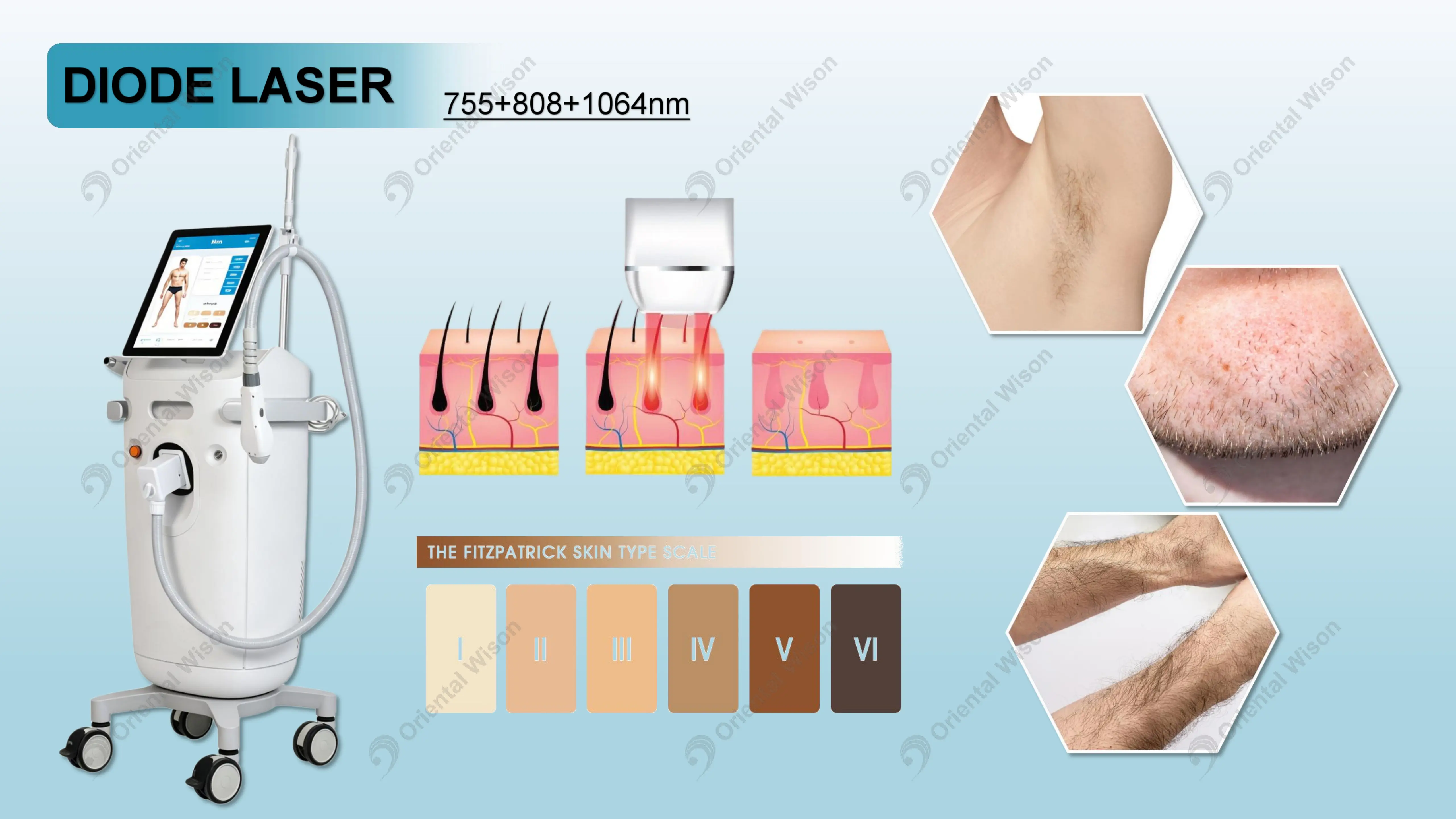

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** operates on selective photothermolysis. Laser energy passes through the skin surface and reaches the root of hair follicles. Light converts into heat, damaging follicle tissue and hair papilla while sparing surrounding structures.

H3: Three Wavelengths for Three Functions

H3: AI Skin Analysis Integration

The built-in analyzer examines skin before each treatment:

- Skin type and tone (Fitzpatrick I-VI)

- Hair thickness and density

- Pigmentation levels

- Dehydration zones

- Sebum production patterns

H2: Core Functions

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** performs three primary aesthetic functions.

H3: Hair Removal

- Permanent reduction for face, legs, underarms, arms, bikini line, chest, and back

- Suitable for all skin tones (Fitzpatrick I-VI)

- Effective on fine, medium, and coarse hair

- Visible results after 3-6 sessions

H3: Pigment Removal

- Targets freckles, age spots, and sun damage

- 755nm wavelength breaks superficial melanin

- 1064nm wavelength treats deeper pigmentation

- Gradual clearing over 2-4 sessions

H3: Skin Whitening

- 1064nm low-fluence toning protocol

- Reduces overall melanin content

- Improves skin brightness and uniformity

- Zero downtime with weekly sessions

H3: Additional Skin Benefits

- Skin tightening and pore refining

- Improved skin texture and natural glow

- Minimal discomfort during treatment

H2: AI Skin Analysis Features

H3: Personalized Treatment Parameters

The analyzer assesses skin tone, sensitivity, and hair thickness. The system recommends optimal laser settings for each client. This customization enhances results while minimizing risk.

H3: Enhanced Safety on Darker Skin

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** accurately analyzes pigmentation and melanin levels. The device adjusts parameters automatically. This ensures safety and avoids burns on Fitzpatrick IV to VI skin types.

H3: Early Detection of Skin Issues

The analyzer detects hidden skin problems before laser application:

- Deeper pigmentation not visible to the naked eye

- Dehydration levels in different areas

- Uneven sebum production

- Early signs of sun damage

H3: Improved Efficiency and Efficacy

Treatment parameters are tailored to each specific client. The diode laser produces better outcomes for hair removal, pigment removal, and skin whitening. Fewer sessions are required compared to non-analyzer systems.

H3: Improved Professional Credibility

Data-driven analysis builds client trust. The scientific approach to treatment demonstrates professionalism and expertise.

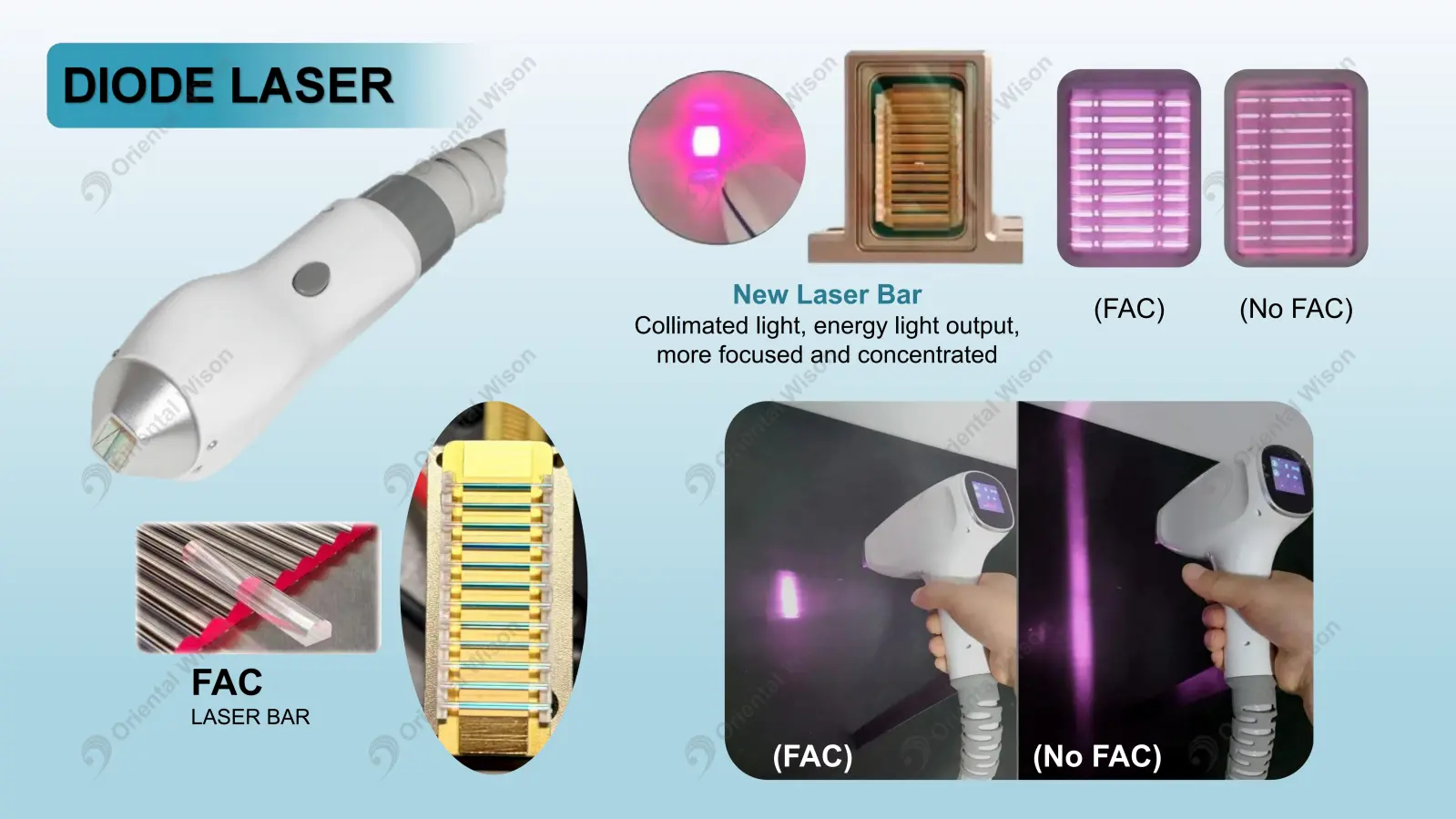

H2: FAC Collimation and Compression Technology

The handpiece incorporates FAC technology with four distinct advantages.

H3: Advantage 1 - Uniform Laser Output

FAC collimation reduces the laser output divergence angle. The result is a more uniform and concentrated laser output. This yields superior clinical hair removal results.

H3: Advantage 2 - Extended Laser Lifespan

The technology minimizes damage from optical back-reflection. This effectively extends the service life of the laser within the handpiece.

H3: Advantage 3 - Enhanced Cooling Performance

By reducing divergence angle and back-reflection losses, the handpiece reduces photothermal energy loss. This enhances the cooling performance of the handpiece.

H3: Advantage 4 - Superior Stability

Laser sources using FAC fast-axis collimation technology demonstrate superior stability and lower repair rates. This technology has become the industry standard.

H2: Advanced Cooling System

The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** features a four-part cooling system.

The system alarms when water temperature exceeds 45°C, ensuring safe operation at all times.

H2: Frequently Asked Questions

FAQ 1: How does the AI skin analyzer improve hair removal results compared to standard diode lasers?

Answer: The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** uses advanced imaging and multi-spectral analysis to examine each client before treatment. The analyzer measures skin type, melanin index, hair thickness, and density across different body areas. Standard diode lasers rely on operator visual assessment, which can be subjective and inaccurate. The BBT PRO system converts objective data into specific laser parameters including fluence, pulse duration, and spot size. For example, a client with Fitzpatrick IV skin and coarse black hair receives different settings than a client with Fitzpatrick II skin and fine brown hair. This personalization reduces the risk of burns on darker skin and improves hair reduction rates by approximately 30 percent compared to non-analyzer systems.

FAQ 2: Can the BBT PRO perform pigment removal and skin whitening on all skin types?

Answer: Yes, the **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** performs pigment removal and skin whitening across all Fitzpatrick skin types, but with different wavelength selections. For skin types I to III, the 755nm wavelength is effective for freckles, age spots, and superficial pigmentation. A single session typically clears 30-50 percent of visible pigment. For skin types IV to VI, the 1064nm wavelength is the safe choice. The longer wavelength bypasses epidermal melanin and targets deeper pigment clumps without causing post-inflammatory hyperpigmentation. For skin whitening, the 1064nm low-fluence toning protocol works on all skin types using 2-4 J/cm² with 6-8 passes. Clients see brightness improvement after 3-5 weekly sessions.

FAQ 3: What makes the cooling system on the BBT PRO different from other diode laser machines?

Answer: The **BBT PRO Diode Laser Hair Removal with AI Skin Analysis Hair Analyzer** uses a four-component cooling system rather than the single-component systems found on most diode lasers. Basic machines use only air cooling or a simple TEC chip. The BBT PRO combines water cooling, wind cooling fans, a 500W TEC, and a dedicated radiator. The water cooling circulates chilled fluid through the entire handpiece, maintaining consistent temperature during long sessions. The TEC actively cools the contact tip to between 0 and 5°C within two seconds. The fans and radiator remove heat from the base unit, preventing performance drop-off after 30 minutes of continuous use. This multi-layer cooling allows higher fluences for stubborn hair without burning the epidermis. Patients report 70-80 percent less pain compared to air-cooled only systems.

H2: Treatment Protocol Guide

H3: Pre-Treatment Steps

- Step 1: Perform AI skin analysis on clean, dry skin

- Step 2: Review analyzer report with client

- Step 3: Shave treatment area 24 hours before session

- Step 4: Select wavelength based on skin and hair data

- Step 5: Apply cooling gel for sensitive areas

H3: Intra-Treatment Parameters

H3: Post-Treatment Care

- Apply aloe vera or cooling gel

- Avoid sun exposure for 48 hours

- Use SPF 50+ sunscreen on treated areas

- Do not wax or pluck between sessions

- Schedule next session at 6-8 week intervals

H2: Comparison With Standard Diode Lasers

H2: Maintenance Guidelines

H3: Daily Maintenance

- Clean handpiece tip with alcohol wipe after each client

- Check water level indicator on touch screen

- Verify AI analyzer lens is free of debris

- Wipe 15.6 inch display with microfiber cloth

H3: Weekly Maintenance

- Inspect FAC collimator window for residue

- Run self-diagnostic from Android system menu

- Clean external cooling vents with soft brush

H3: Monthly Maintenance

- Calibrate energy output using external meter

- Update AI analyzer software if available

- Document treatment hours per handpiece

H2: Indications and Contraindications

H3: Indications

- Unwanted facial and body hair

- Pseudofolliculitis barbae (razor bumps)

- Freckles and solar lentigo (pigment removal)

- Uneven skin tone (skin whitening)

- Enlarged pores and rough texture

H3: Absolute Contraindications

- Pregnancy or breastfeeding

- Active skin infection or open wound

- Isotretinoin use within past 6 months

- History of keloid scarring

- Photosensitivity disorders (lupus, porphyria)

- Malignant skin lesions

H3: Relative Contraindications

- Tanned skin (wait 4 weeks after sun exposure)

- History of cold sores (consider antiviral prophylaxis)

- Metallic implants in treatment field

- Recent cosmetic injections (wait 2 weeks)
