Diode Laser IPL YAG Laser RF Machine

The 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine consolidates nine aesthetic treatments into one compact workstation. Diode laser provides permanent hair reduction across all skin types. IPL handles acne, vascular lesions, rejuvenation, and additional hair removal options. Mini Pico laser removes tattoos and performs carbon peels. RF delivers face lifting, skin tightening, and pain relief. The 15.6 inch touch screen, 500W TEC cooling system, and mobile design make this system suitable for clinics seeking maximum capability within a limited footprint.

It delivers nine aesthetic treatments in one compact workstation. Diode laser and IPL cover all hair removal needs. Mini Pico Laser handles tattoo removal and carbon peels. RF provides face lifting and pain relief. The 15.6 inch touch screen, 500W TEC cooling system, and interchangeable handpieces make this system suitable for clinics seeking a versatile, space-saving solution.

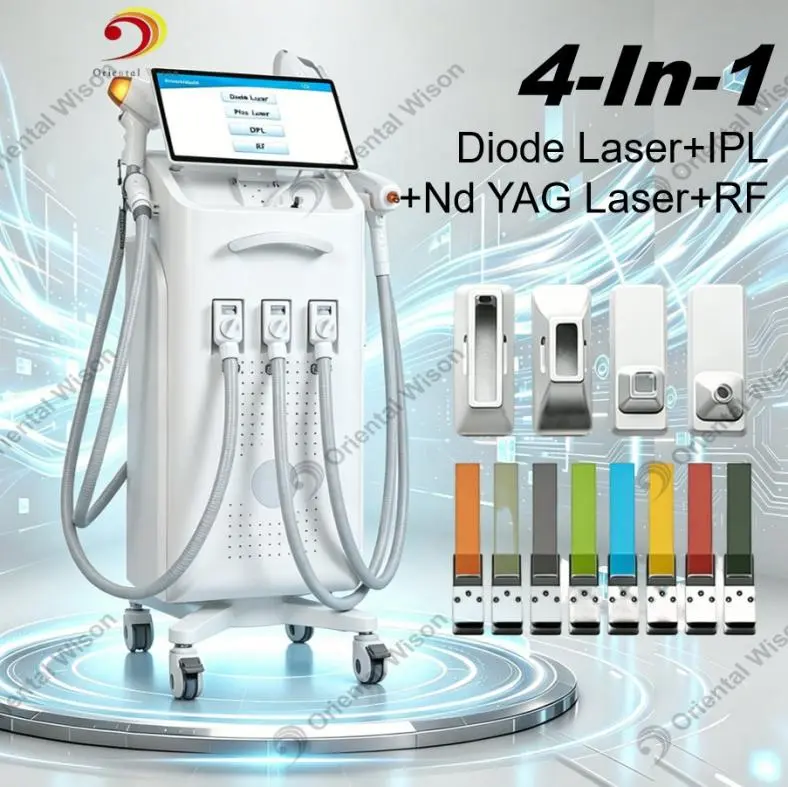

The 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine integrates four core technologies into a single professional platform. This system addresses hair removal, tattoo removal, acne treatment, vascular lesions, skin rejuvenation, wrinkle reduction, carbon peel, face lifting, and pain relief without requiring multiple devices.

H1: Technical Specifications

H3: Technology Breakdown

H2: Core Functions by Technology

The 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine delivers nine distinct aesthetic treatments through four handpieces.

H3: Diode Laser - Hair Removal

- Permanent reduction of unwanted hair

- Effective on underarms, bikini line, face, legs, and back

- Laser bar wavelengths: 808nm + 1064nm + 755nm

- Contact cooling protects epidermis during treatment

- Suitable for skin types I through VI

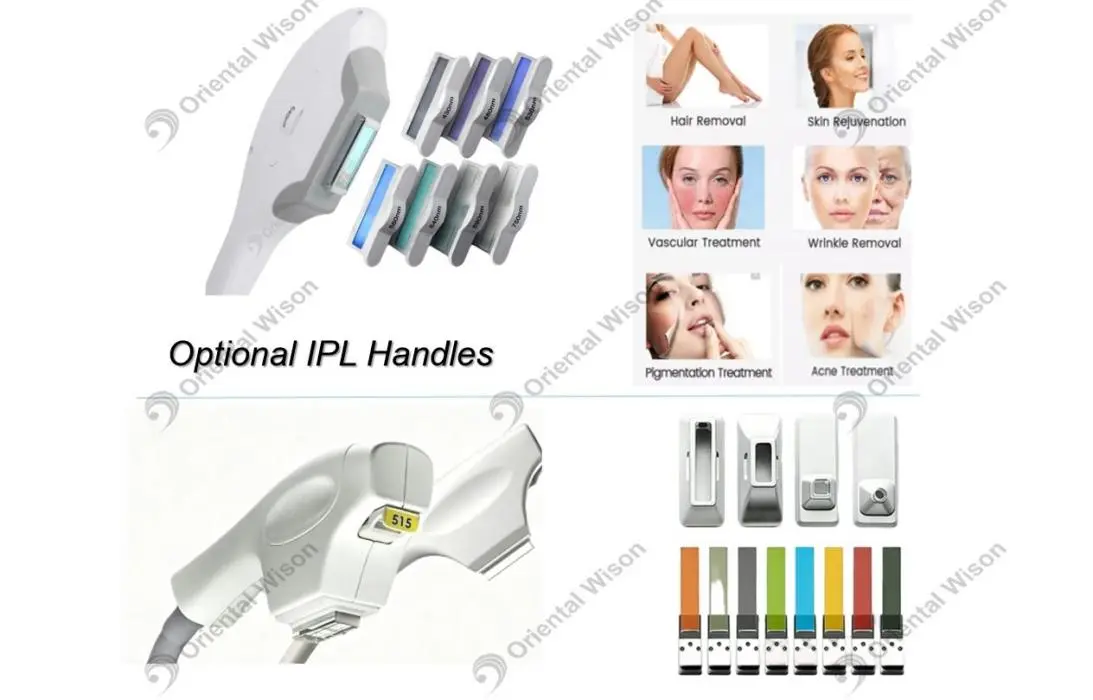

H3: IPL - Acne Treatment, Vascular Treatment, Skin Rejuvenation, Wrinkle Removal, Hair Removal

IPL Filter | Clinical Use

480-1200nm | Acne treatment, spider vein removal |

| 530-1200nm | Freckle removal, superficial pigmentation |

| 640-1200nm | Hair removal on light to medium skin |

| Optional 430-1200nm | Active acne, bacterial reduction |

| Optional 590-1200nm | Vascular lesions, rosacea |

| Optional 690-1200nm | Thick, coarse hair |

| Optional 750-1200nm | Very dense, stubborn hair |

H3: Mini Pico Laser - Tattoo Removal, Carbon Peel

- 532nm for green, red, and colored tattoos and birthmarks

- 1064nm for brown, black, and dark tattoos

- 1320nm for carbon peel with medical mask

- 755nm for freckle removal and skin whitening

- Photomechanical effect breaks ink into microscopic particles

H3: RF - Face Lifting, Skin Rejuvenation, Pain Relief

RF Probe Size | Application

20mm | Periorbital wrinkles (eyes and nose area)

28mm | Full face lifting and contouring

35mm | Body shaping, weight loss support

- Bipolar RF energy heats dermal layers

- Stimulates collagen contraction without surface damage

- Provides pain relief through deep tissue warming

H2: Step-by-Step Clinical Applications

H3: Hair Removal Protocol

- Step 1: Shave treatment area 24 hours before session

- Step 2: Select Diode laser or IPL based on skin type

- Step 3: Apply cooling gel if using IPL

- Step 4: Deliver overlapping pulses across target zone

- Step 5: Schedule 4-6 sessions at 6-8 week intervals

H3: Tattoo Removal Using Mini Pico Laser

- Black ink: 1064nm, 1500-2000 mJ

- Red/orange ink: 532nm, 1000-1500 mJ

- Green/blue ink: 755nm, 1200-1800 mJ

- Multiple sessions required every 8-10 weeks

- Body naturally clears fragmented ink through lymphatics

H3: Carbon Peel Procedure

- Apply medical carbon lotion to clean skin

- Allow 15 minutes for carbon to penetrate pores

- Use 1320nm Mini Pico Laser over entire face

- Carbon particles explode, removing debris and dead cells

- Immediate brightness and pore size reduction

H3: RF Face Lifting Session

- Cleanse skin and remove all makeup

- Apply conductive gel to treatment area

- Select 28mm RF probe for full face

- Perform slow, circular motions for 15-20 minutes

- Expect mild warmth during treatment

- Visible lifting after 4-6 weekly sessions

H2: Key Features of the Workstation

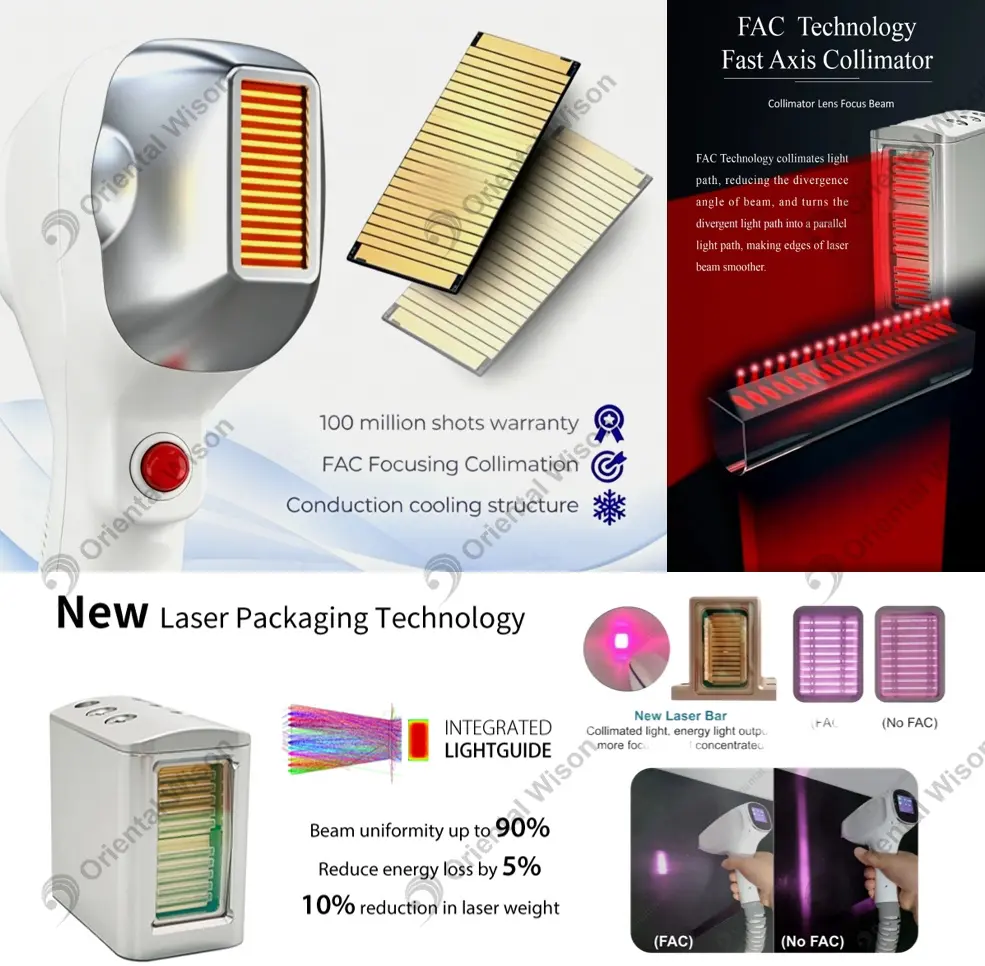

H3: Latest FCA Laser Bar Technology

- Uniform energy distribution across entire spot size

- Extended diode life compared to traditional bars

- Consistent output across all three Diode wavelengths

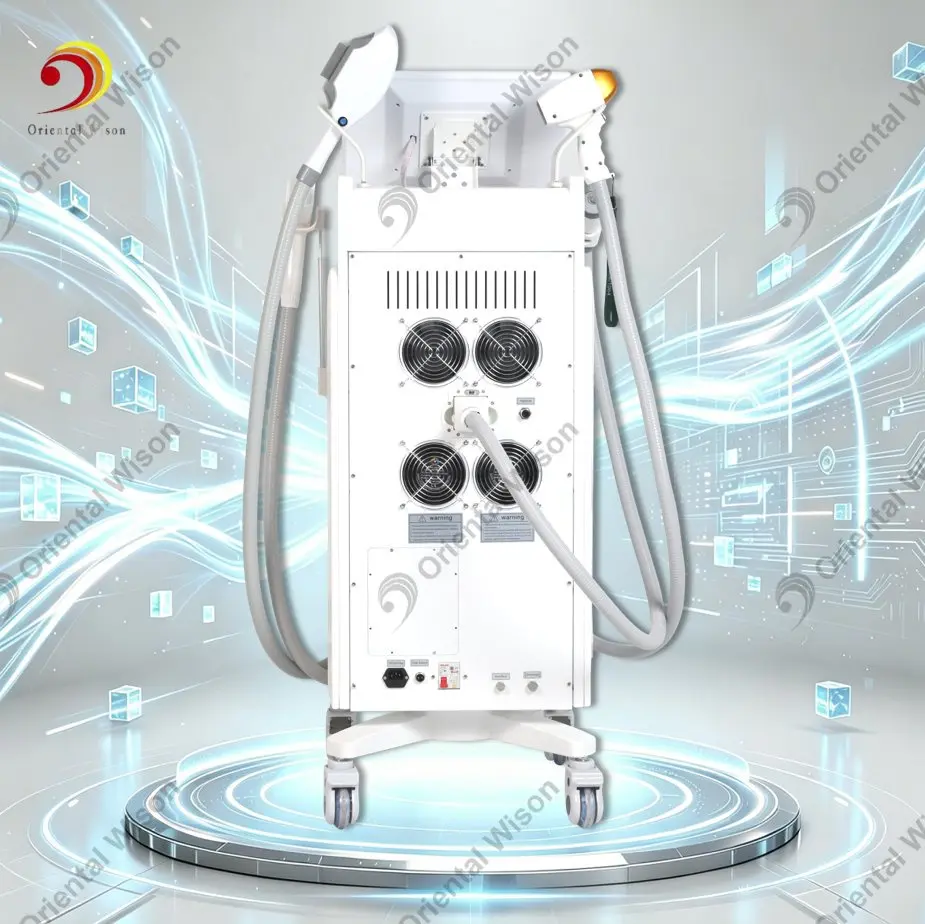

H3: Advanced Cooling System

- Water circulation plus internal fans plus 500W TEC

- Maintains handpiece tip temperature between 0 and 5°C

- Protects skin during high-fluence hair removal

- Enables comfortable tattoo removal sessions

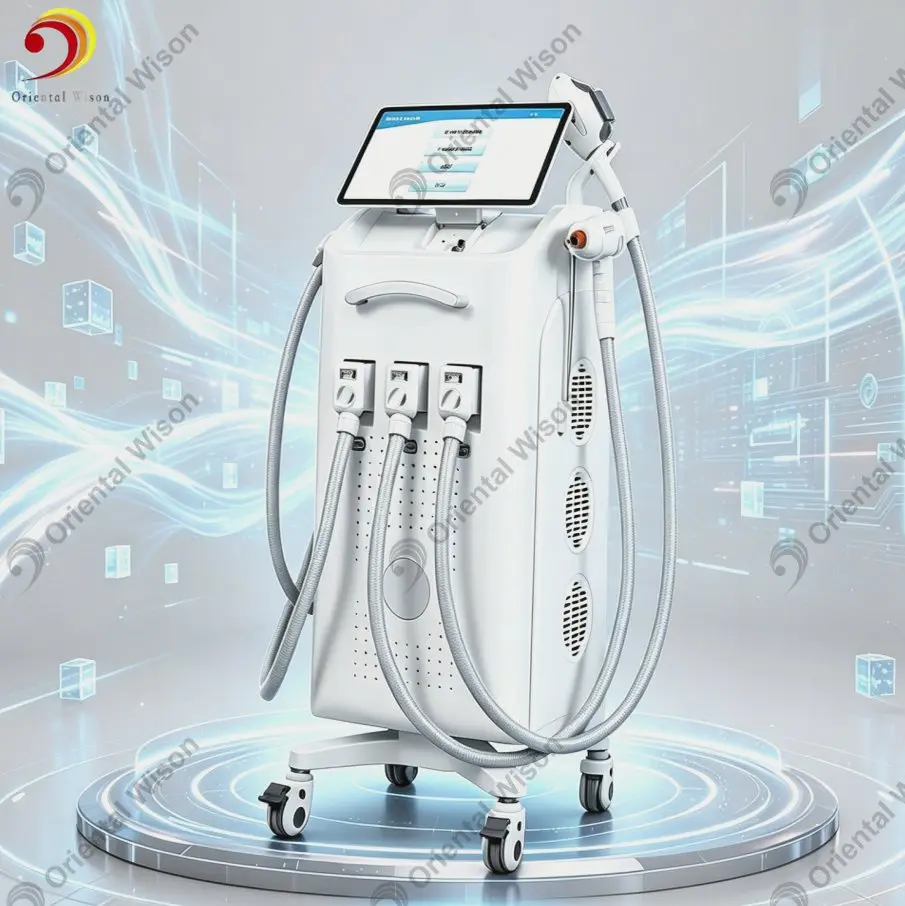

H3: 15.6 Inch Touch Screen Interface

- Preset protocols for each of the nine treatments

- Real-time adjustment of fluence, frequency, and mode

- Treatment history storage per client

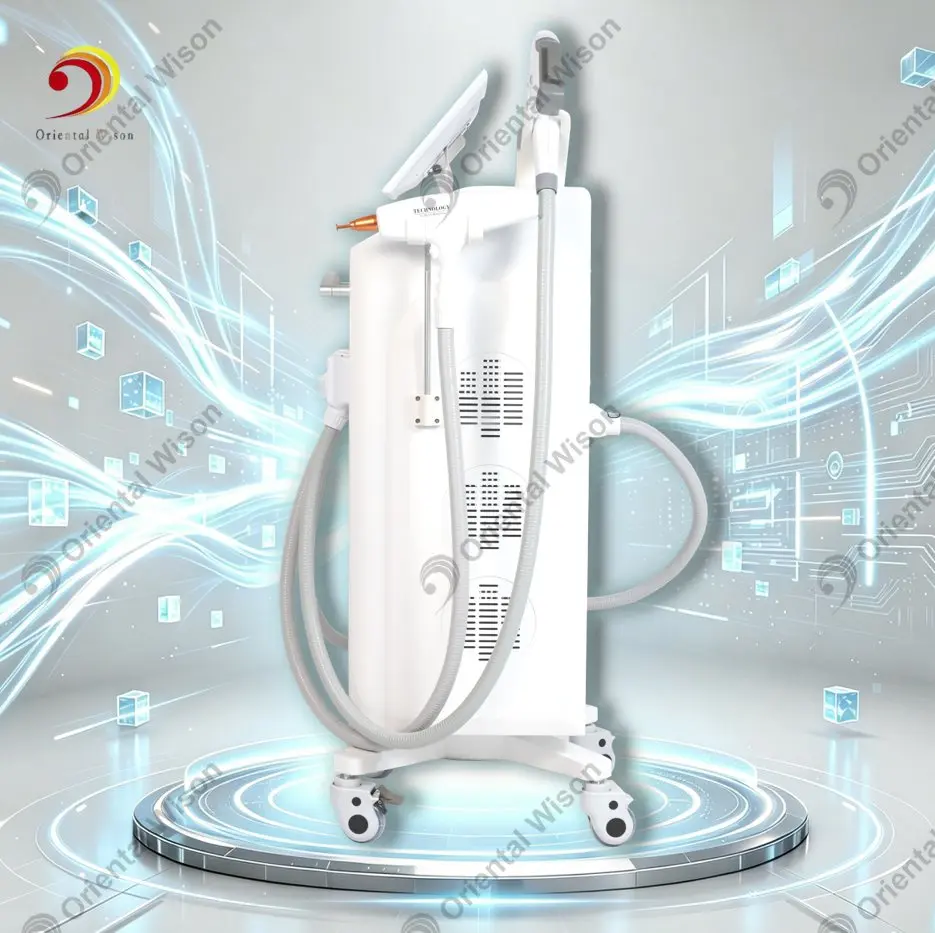

# H3: Space-Saving Mobile Design

- 52 x 61 x 126 cm footprint

- Lockable casters for room-to-room mobility

- One electrical connection powers all four technologies

H2: Frequently Asked Questions

FAQ 1: How does the 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine handle both hair removal and tattoo removal in the same device?

Answer: The 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine uses completely different handpieces and wavelengths for each function. For hair removal, the Diode laser bar delivers 808nm, 1064nm, and 755nm simultaneously to target melanin in hair follicles. The IPL handpiece with 640nm filter offers a second option for lighter skin types. For tattoo removal, the Mini Pico laser handpiece uses 532nm for red/orange inks, 755nm for green/blue inks, and 1064nm for black inks. The operator simply attaches the correct handpiece and selects the preset protocol on the touch screen. The machine automatically adjusts output parameters. This design means one workstation replaces separate hair removal and tattoo removal devices, saving clinical floor space and capital investment.

FAQ 2: What specific results can I expect from the RF function for face lifting and pain relief?

Answer: The RF function on the 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine delivers two distinct outcomes. For face lifting, the 28mm probe heats dermal tissue to 40-45°C. This temperature causes existing collagen fibers to contract immediately, producing an instant tightening effect. Over the following 8-12 weeks, heat stimulates fibroblasts to produce new collagen. After 4-6 weekly sessions, patients typically see jawline definition improvement of 30-50 percent and reduction of nasolabial fold depth. For pain relief, RF energy penetrates 15-20mm into muscle and fascia. The deep thermal effect increases blood circulation and reduces muscle spasms. Clients with chronic neck or back tension report significant relief after 20-minute RF sessions. The 35mm probe works well for larger body areas.

FAQ 3: How does the cooling system protect skin during high-energy IPL and Diode laser treatments?

Answer: The 4 in 1 Diode Laser & Q Switch Pico Laser & IPL Laser & RF Facial Lifting Machine features a three-part cooling system rated at 500W TEC plus water and fans. The TEC (thermoelectric cooler) actively chills the handpiece tip to between 0 and 5°C within seconds of activation. When the operator presses the tip against skin, the cold contact numbs the superficial epidermis before each laser pulse. This reduces pain sensation by approximately 70-80 percent compared to uncooled systems. The cooling also prevents thermal injury to the skin surface while allowing full laser energy to reach target chromophores in the dermis. For hair removal, this means safe treatment on darker skin types. For IPL, the cooling enables higher fluences for faster results. Patients experience mild redness that resolves within 2-24 hours, with no blistering or downtime.

H2: Comparison With Single-Function Devices

H2: Maintenance Guidelines

H3: Daily Maintenance

- Clean all handpiece tips with alcohol wipes after each client

- Verify water level in cooling reservoir

- Wipe touch screen with microfiber cloth

H3: Weekly Maintenance

- Inspect Diode laser bar for debris on output window

- Check IPL filter crystal for cracks or residue

- Clean cooling system air intake vents

- Run test pulses on energy meter

H3: Monthly Maintenance

- Calibrate energy output for all four technologies

- Replace water if cooling efficiency decreases

- Document pulse counts per handpiece

H2: Contraindications and Safety

H3: Absolute Contraindications

- Pregnancy or breastfeeding

- Active skin infections in treatment area

- Current isotretinoin use (within 6 months)

- Photosensitivity disorders (lupus, porphyria)

- Malignant skin lesions

H3: Relative Contraindications

- Tanned skin (wait 4 weeks after sun exposure)

- History of keloid scarring

- Metallic implants near RF treatment area

- Pacemakers (RF contraindicated)
