IPL Laser & NIR Cell Light – 4K Screen Multi-Filter Beauty Device

H1: Clinical-Grade IPL Laser & NIR Cell Light System for Aesthetic Practices

H2: Product Overview

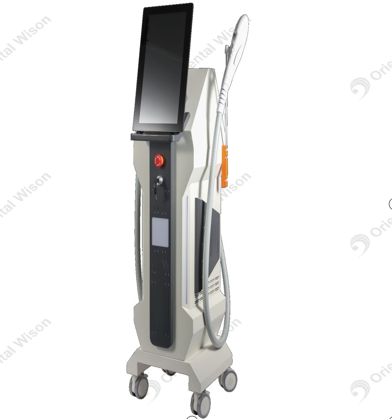

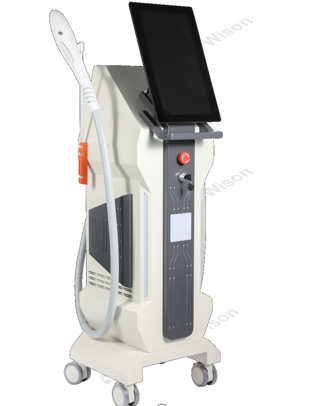

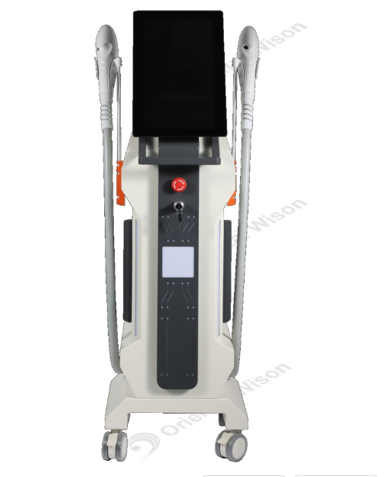

This professional workstation combines high-intensity pulsed light with near-infrared therapy in a single 500W platform. Designed for medical spas, dermatology clinics, and aesthetic centres, the system delivers targeted treatments for vascular lesions, acne, pigmentation, and skin rejuvenation.

Core capabilities:

11 interchangeable optical filters for condition-specific wavelengths

15-inch 4K touchscreen for precise parameter control

Dual working modes (FPL + NIR) for synergistic effects

Maximum energy output of 50J/cm²

Pulse duration up to 10ms for optimal thermal relaxation

H2: Complete Technical Specifications

H3: Optical and Energy Parameters

H3: Display and User Interface

Screen size: 15-inch diagonal

Resolution: 4K (3840 × 2160 pixels)

Technology: Capacitive touchscreen with anti-glare coating

Interface features:

*Pre-set protocol library for each filter type

*Real-time energy monitoring and adjustment

*Patient history storage and recall

*Firmware upgradeable via USB-C port

H3: Physical Dimensions and Power

H2: The 11 Filters – Clinical Applications by Wavelength

H3: Filter Selection Guide

H3: How to Select the Right Filter

Vascular conditions → VASCULAR, 585nm, or 615nm (based on vessel depth)

Pigmentation → 515nm or 560nm for epidermal spots

Active acne → ACNE filter (blue light spectrum)

Hair removal → 640nm, 690nm, or 755nm (skin-type dependent)

Precision work → Round spot adaptor

Large area coverage → Square spot adaptor

H2: Working Modes – FPL and NIR Explained

H3: FPL Mode (Fluorescent Pulsed Light)

Delivers high-energy broad-spectrum pulses

Optimal for photothermolysis of vascular and pigment targets

Pulse stacking capability for resistant lesions

Best used with shorter wavelength filters (515–640nm)

H3: NIR Mode (Near-Infrared)

Continuous or pulsed output at 810–950nm

Penetrates up to 5mm into dermal layers

Stimulates fibroblast activity and collagen remodelling

Reduces post-treatment inflammation

Ideal as a soothing finish after FPL treatments

H3: Combination Mode (FPL + NIR Simultaneously)

Sequential firing: FPL pulse followed immediately by NIR burst

Synergistic effect – photothermolysis plus biostimulation

Reduces total treatment time by 30–40%

Enhances patient comfort with built-in cooling between pulses

H2: Key Benefits for Clinical Practice

H3: Treatment Versatility

Single device replaces multiple standalone systems

Covers vascular, pigment, acne, hair, and rejuvenation indications

Suitable for Fitzpatrick skin types I–V

H3: Precision and Safety

4K display enables fine adjustments in 1J/cm² increments

Real-time skin impedance monitoring

Automatic shut-off if handpiece overheats or loses contact

Built-in test spot protocol for individualized dosing

H3: Operational Efficiency

500W power output reduces session time significantly

Pre-set protocols minimise operator error

Large touchscreen simplifies training for new staff

67kg robust construction ensures stability during high-volume use

H3: Long-Term Value

Flashlamp lifespan: 100,000 pulses

NIR LED array rated for 50,000 hours

User-replaceable filters and consumables

Dual voltage compatibility for international use

H2: Step-by-Step Treatment Workflow

H3: Pre-Treatment

Conduct patient consultation and skin type assessment

Select appropriate filter based on condition and Fitzpatrick type

Perform a test spot at 10J/cm² on a discrete area

Wait 10–15 minutes to observe any adverse reaction

H3: During Treatment

Set energy (10–50J/cm²), pulse width (1–10ms), and working mode

Choose Round or Square spot adaptor based on treatment area

Glide handpiece with 10–15% overlap between pulses

Monitor real-time energy readout on 4K display

H3: Post-Treatment

Apply cooling gel or soothing cream

Document settings and patient response

Schedule follow-up session (typically 3–6 weeks apart)

Clean handpiece window with isopropyl alcohol

H2: Safety and Compliance Features

*Skin impedance sensor – dynamically adjusts fluence to tissue resistance

*Contact detection – prevents firing when handpiece is not fully seated on skin

*Over-temperature protection – automatic cooling pause if tip exceeds 42°C

*Emergency stop – physical button plus on-screen kill switch

*CE marked – complies with IEC 60601-2-57 for laser/light therapy devices

*Protective eyewear – included for operator and patient

*Remote interlock port – for integration with treatment room safety systems

H2: Frequently Asked Questions (FAQ)

H3: FAQ 1 – FPL vs. NIR: When to use each mode?

Q: What is the difference between FPL and NIR modes, and when should I use each?

A: FPL and NIR serve distinct clinical purposes:

FPL (Fluorescent Pulsed Light):

Broad-spectrum output (400–750nm)

Targets melanin and hemoglobin

Used for: pigmentation, vascular lesions, hair reduction

Best with short-wavelength filters (515–640nm)

NIR (Near-Infrared):

Continuous output (810–950nm)

Penetrates 3–5mm into dermis

Used for: collagen stimulation, skin tightening, post-treatment soothing

No epidermal damage – safe for all skin types

Combination mode:

FPL pulse followed immediately by NIR burst

One pass – dual action (photothermolysis + biostimulation)

Reduces treatment time by 30–40%

H3: FAQ 2 – How to select the right filter?

Q: How do I choose the correct filter for different skin types and conditions?

A: Follow this decision tree:

By condition:

Vascular (rosacea, spider veins) → VASCULAR or 585nm

Pigmentation (freckles, sun spots) → 515nm or 560nm

Active acne → ACNE (400–450nm)

Hair removal → 690nm (Fitzpatrick I–III) or 755nm (Fitzpatrick IV–V)

By skin type (Fitzpatrick):

Type I–III → Shorter wavelengths (515–585nm) – safer, superficial targets

Type IV–V → Longer wavelengths (640–755nm) – deeper penetration, less melanin competition

By area:

Small/curved (nose, chin) → Round spot (10mm)

Large/flat (cheeks, back, thighs) → Square spot (12×12mm)

Always: Perform a test spot at 10J/cm² and observe for 10–15 minutes before full treatment.

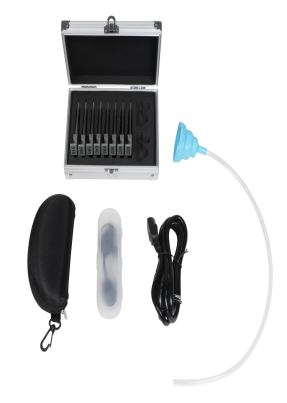

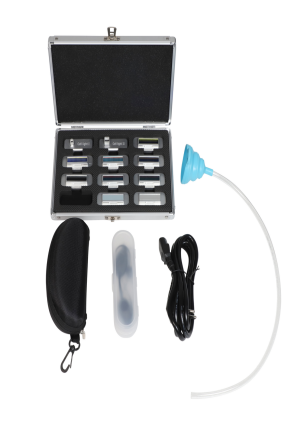

H2: Packaging and Ordering Information

H2: Conclusion

This IPL laser & NIR Cell light system integrates 11 filter-based therapies, dual working modes, and a 500W power engine into a single clinical workstation. The 15-inch 4K display simplifies protocol selection, while the 50J/cm² maximum energy and 10ms pulse width provide the flexibility to treat vascular, pigment, acne, and hair conditions across diverse skin types. With CE certification, commercial-grade construction, and a comprehensive safety architecture, this device delivers consistent, evidence-based outcomes for practices seeking to expand their light therapy portfolio.
