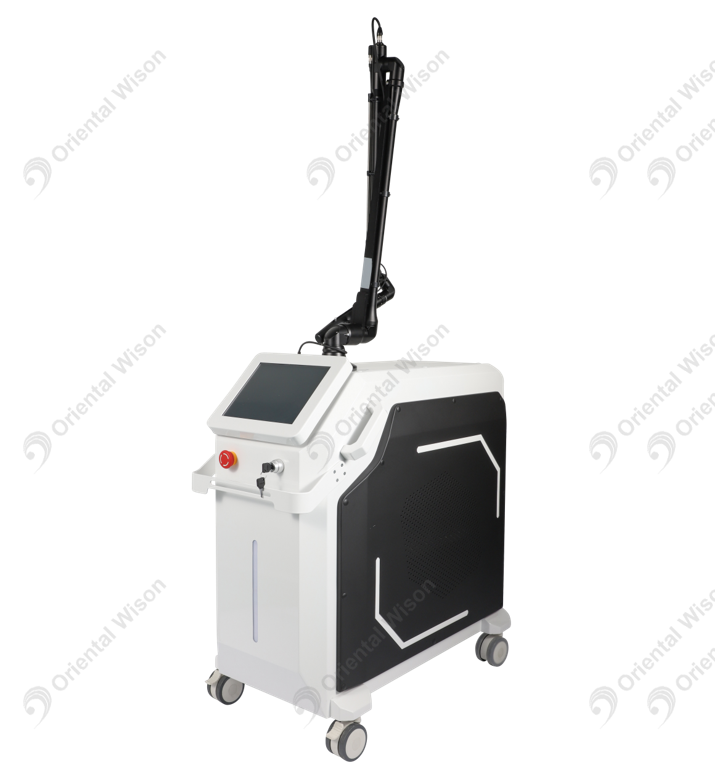

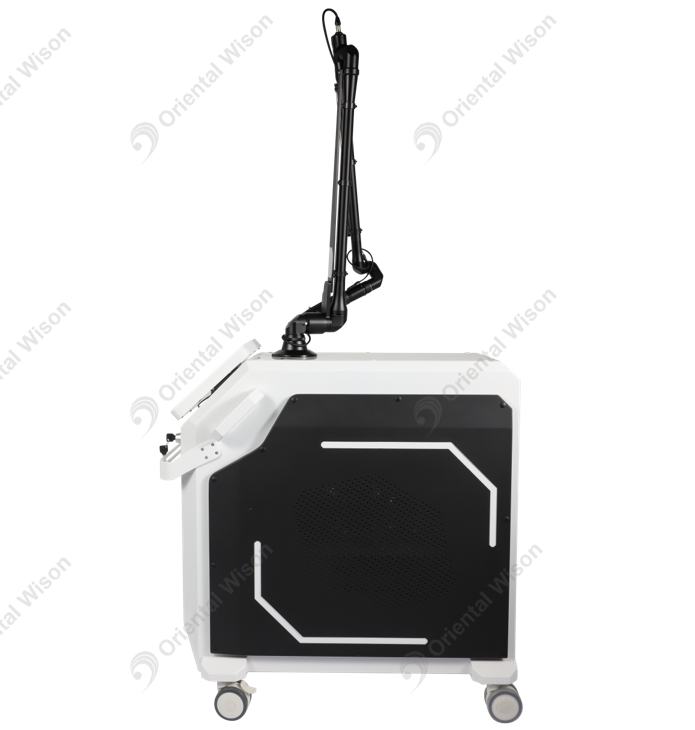

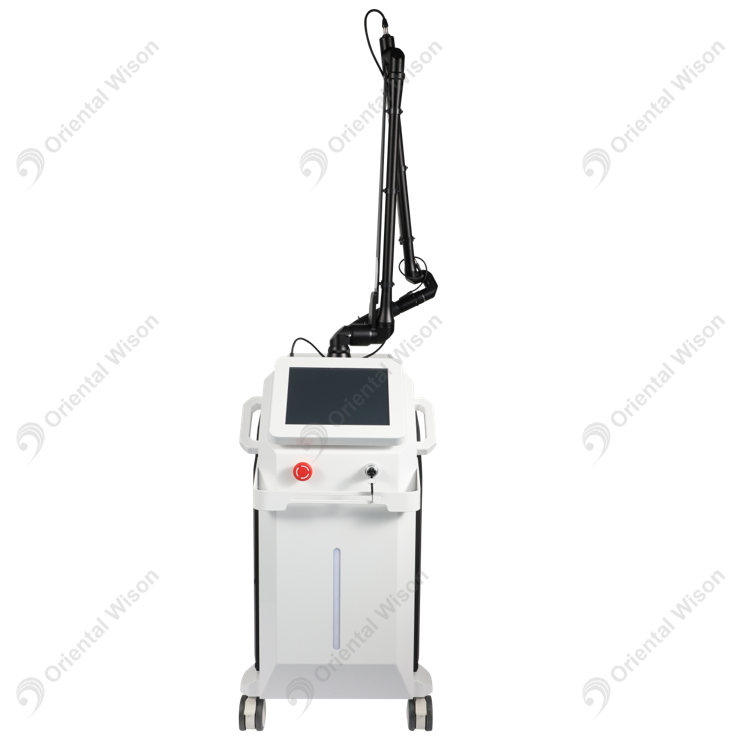

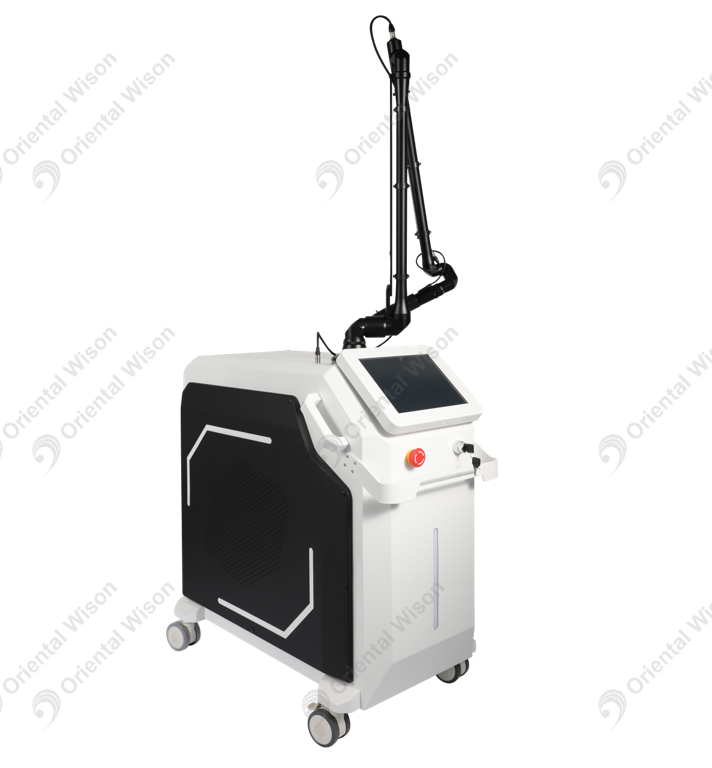

PICOAIM Picosecond Laser Chloasma Removal Machine

Professional Picosecond Laser Machine | 4000W Advanced Pico Tattoo Removal System

Industry-Leading Picosecond Laser Technology for Superior Results

The Picosecond Laser system represents a quantum leap in aesthetic treatment technology. Operating at pulse durations measured in picoseconds (trillionths of a second), this advanced platform delivers unprecedented precision for tattoo removal, pigmented lesion treatment, and skin rejuvenation. Unlike traditional nanosecond lasers, the picosecond pulse duration creates a photoacoustic effect that shatters target chromophores into microscopic particles, enabling faster clearance with fewer treatments and reduced thermal damage to surrounding tissue.

Technical Specifications & Performance Metrics

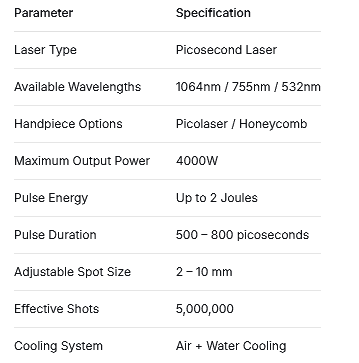

Complete System Parameters

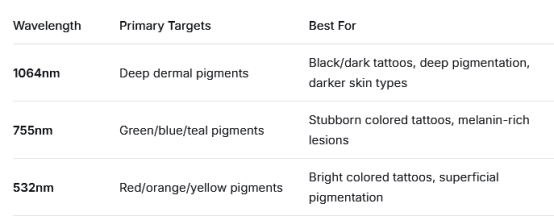

Wavelength Applications Guide

Key Features & Functional Advantages

Precision Picosecond Pulse Technology

• 500-800ps pulse duration generates a powerful photoacoustic shockwave that breaks pigment particles into dust-like fragments
• 2 Joules maximum energy ensures sufficient fluence for even the most resistant tattoo inks
• Results in fewer treatment sessions compared to Q-switched alternatives

Versatile Triple-Wavelength Platform

• Three clinically proven wavelengths cover the full spectrum of tattoo colors and pigmentation types
• 1064nm penetrates for dark ink and deeper lesions
• 755nm offers optimal absorption for green and blue pigments
• 532nm targets superficial red, orange, and yellow chromophores

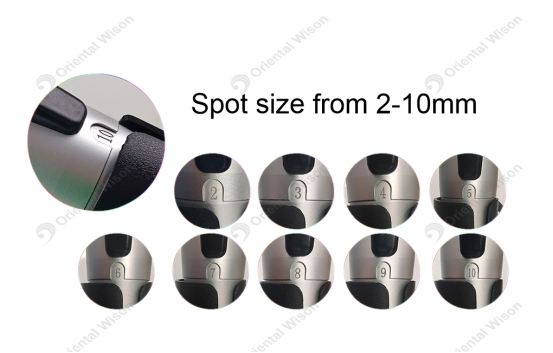

Adjustable Spot Size (2-10mm)

• Small spot sizes (2-4mm) for precision work on delicate areas and fine details
• Large spot sizes (6-10mm) for rapid coverage of large tattoos and broad lesions
• Seamless spot adjustment without changing handpieces

Dual Handpiece System – Picolaser & Honeycomb

• Picolaser handpiece: Standard flat-top beam profile for uniform energy distribution
• Honeycomb handpiece: Fractional beam delivery for skin resurfacing, texture improvement, and stretch mark reduction
• Quick-change mechanism allows instant switching between treatment modes

High-Efficiency Cooling System

• Wind + water cooling maintains optimal operating temperature during extended sessions
• Prevents overheating and ensures consistent pulse-to-pulse energy stability
• Extends internal component lifespan and reduces service downtime

Massive 5 Million Effective Shots

• Industry-leading shot count significantly lowers cost-per-treatment
• Reliable performance across thousands of patient procedures
• Reduces long-term operational expenses for clinic owners

Clinical Applications & Treatment Versatility

Primary Indications

• Tattoo removal – all ink colors and skin types
• Pigmented lesion treatment – solar lentigines, age spots, freckles, melasma
• Skin rejuvenation – fine lines, wrinkles, enlarged pores
• Acne scar revision – atrophic and hypertrophic scarring
• Stretch mark improvement – through honeycomb fractional mode

Skin Type Compatibility

• Safe and effective for Fitzpatrick skin types I through VI
• 1064nm wavelength provides deeper penetration with reduced epidermal melanin absorption, minimizing hypopigmentation risk in darker skin

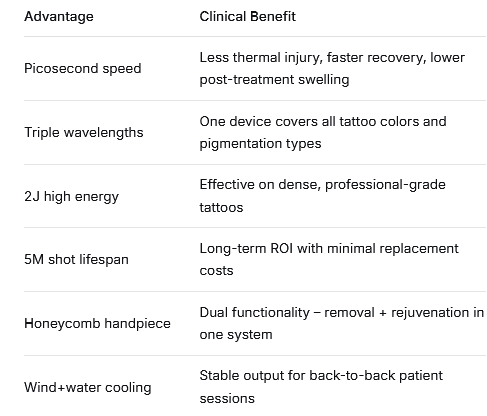

Why Choose This Picosecond Laser Machine for Your Clinic?

Frequently Asked Questions About Picosecond Laser Machine

Q: How does a Picosecond Laser Machine differ from a Q-switched nanosecond laser?

A: The fundamental difference lies in pulse duration. A Picosecond Laser Machine delivers energy in 500-800 picoseconds (trillionths of a second), whereas Q-switched lasers operate in nanoseconds (billionths of a second). This shorter pulse creates a photoacoustic effect that shatters pigment particles into much smaller fragments – approximately 10 times finer than nanosecond fragmentation. Smaller particles are cleared more rapidly by the immune system, meaning patients typically require 3-5 sessions with a picosecond device compared to 6-10 sessions with nanosecond technology. Additionally, the ultra-short pulse minimizes heat diffusion to surrounding skin, significantly reducing the risks of scarring, hyperpigmentation, and prolonged erythema.

Q: What is the purpose of having three wavelengths (1064nm, 755nm, 532nm) on one Picosecond Laser Machine?

A: Different tattoo inks and pigment types absorb specific wavelengths of light most effectively. A single-wavelength device can only treat a limited color range. The 1064nm wavelength is the gold standard for black, dark blue, and brown pigments, and it penetrates most deeply – making it suitable for all skin types including darker Fitzpatrick tones. The 755nm wavelength specifically targets green, teal, and light blue pigments that are notoriously resistant to other wavelengths. The 532nm wavelength is absorbed by red, orange, and yellow chromophores. By integrating all three wavelengths into one Picosecond Laser Machine, practitioners can treat the entire spectrum of tattoo colors and pigmented lesions without purchasing multiple devices. This versatility also allows clinicians to switch wavelengths mid-session when treating multicolored tattoos, ensuring each ink color receives its optimal therapeutic energy.

Q: How many treatments can I expect with this 5-million-shot Picosecond Laser Machine, and what is the maintenance schedule?

A: The 5-million effective shot rating indicates the number of usable pulses before the flash lamp or laser cavity requires significant service. For a busy clinic performing 10-15 tattoo removal sessions daily, this translates to approximately 3-4 years of active clinical use before reaching the shot count limit. However, "effective shots" means the system maintains full specified energy output throughout this lifespan – energy does not degrade gradually. Maintenance primarily involves routine cleaning of the cooling system's air filters (monthly) and distilled water replacement in the water cooling loop (every 6 months). The flash lamp is designed to match the 5M shot lifecycle, so replacement of major components is synchronized. We recommend annual calibration checks by certified technicians to verify wavelength accuracy and energy output. Compared to competing devices with 1-2 million shot lifespans,this Picosecond Laser Machine offers substantially lower total cost of ownership and less frequent downtime for component replacement

Operational Considerations & Best Practices

Pre-Treatment Guidelines

• Perform a test spot at least 48 hours before full treatment
• Adjust spot size based on tattoo density – smaller spots for dense, professional inks
• Select wavelength according to predominant ink color
• Set fluence (energy density) based on skin type and pigment depth

Treatment Protocol Recommendations

• Start with lower energy settings and gradually increase per session
• Overlap spots by no more than 10% to avoid thermal buildup
• Use the honeycomb handpiece for rejuvenation treatments at 2-4 week intervals
• Document settings for each patient to track progress and adjust parameters

Post-Treatment Care

• Apply cold compresses immediately after treatment
• Recommend sunscreen (SPF 50+) for 4-6 weeks post-treatment
• Schedule follow-up sessions at 6-8 week intervals for tattoo removal
• Monitor for adverse reactions and adjust protocols accordingly

Technical Support & Warranty Information

• Comprehensive 2-year warranty on laser head and power supply
• 6-month warranty on handpiece components and disposable parts
• Remote diagnostic support available
• Spare parts inventory maintained for rapid replacement
• Full training materials and clinical protocol guides included

Conclusion – The Smart Investment for Modern Aesthetic Practices

The Picosecond Laser Machine with 4000W output, triple-wavelength flexibility, and 5-million-shot durability represents the pinnacle of current aesthetic laser technology. Whether your practice focuses on tattoo removal, pigmentation correction, or full-face rejuvenation, this single platform delivers exceptional clinical outcomes with minimal downtime for patients and maximum operational efficiency for providers. The combination of picosecond pulse duration, high pulse energy, and adjustable spot sizing ensures you can treat the widest possible range of indications while maintaining safety across all skin types.

For clinics seeking to expand their service offerings or upgrade from outdated Q-switched systems, this device offers clear advantages in treatment speed, patient satisfaction, and long-term profitability. The included honeycomb handpiece further extends functionality to skin resurfacing – a growing market segment with strong patient demand.

Invest in technology that delivers measurable results, reduces chair time, and builds patient loyalty through superior outcomes. Contact our team for a personalized demonstration and discover why leading dermatologists and cosmetic surgeons are switching to picosecond laser solutions.
